Reliance-TC SS

Reliance-TC SS

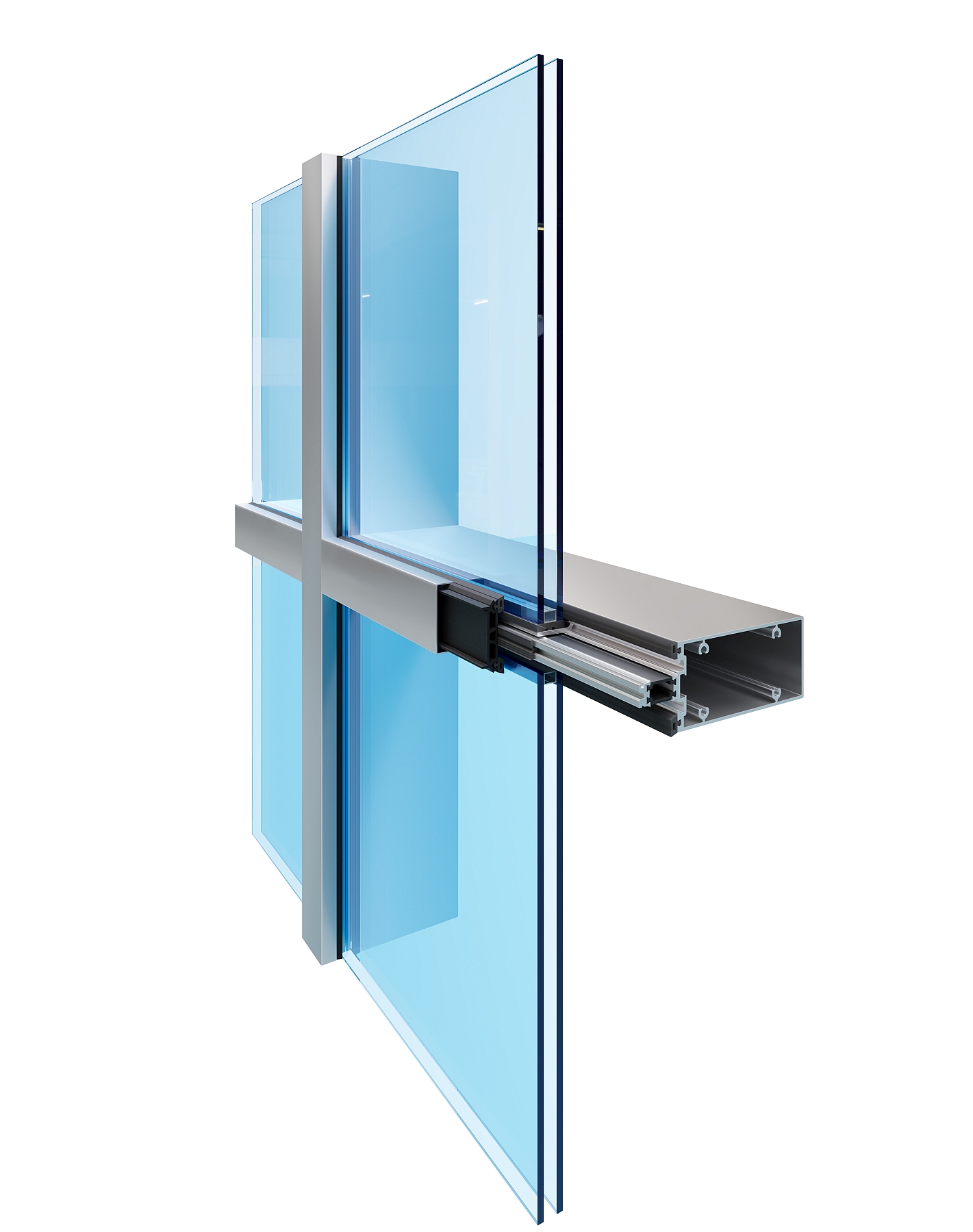

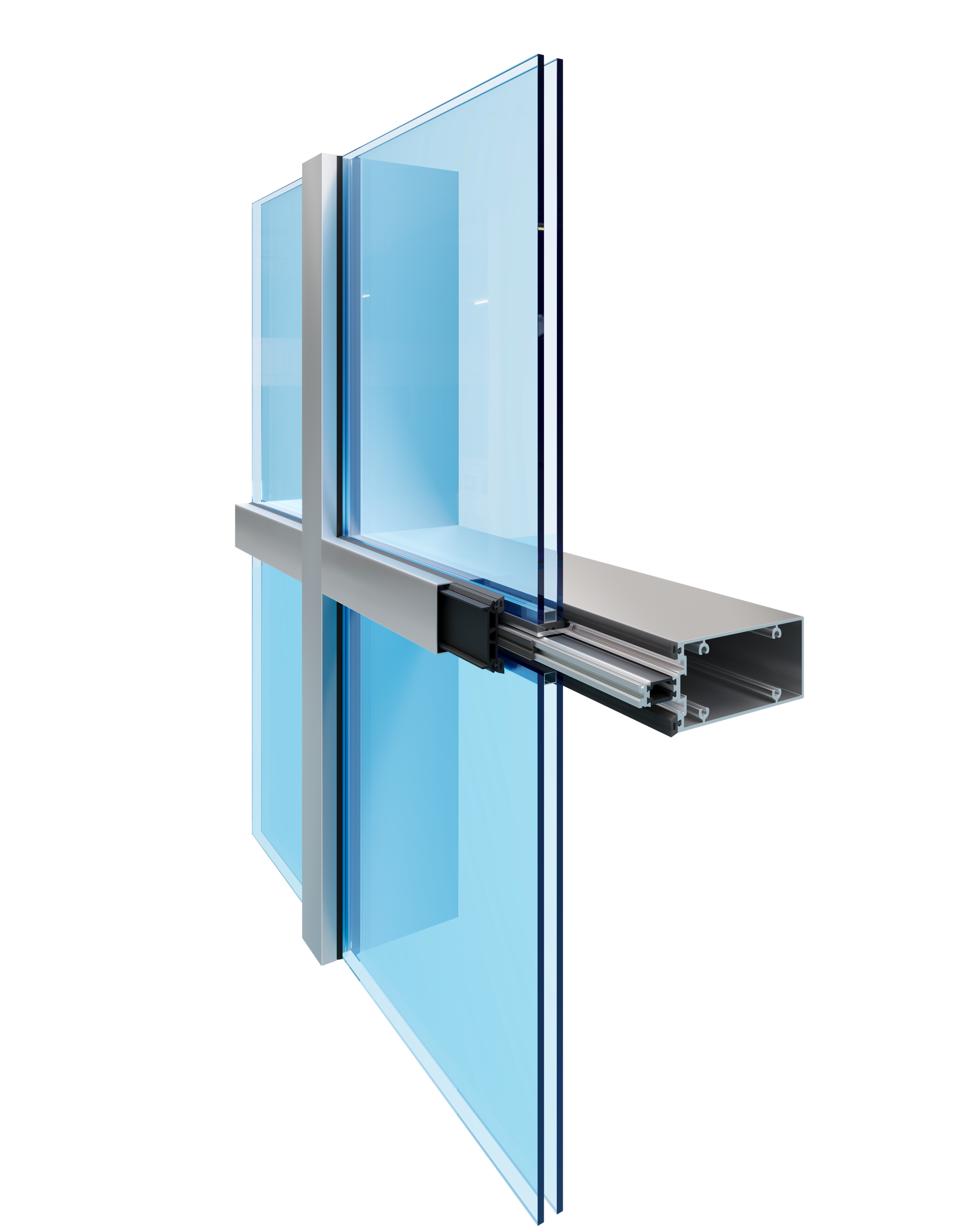

Reliance™-TC SS is a thermally broken, zone glazed, pressure-equalized curtain wall system designed for efficient fabrication and high thermal performance. With multiple glazing configurations, multiple system depths, and glazing options from a 1" IGU to a 1" thin triple IGU, it supports a range of façade conditions and performance goals. Engineered to support IECC Climate Zones 4-8 and evolving stretch codes.

  • • Split vertical member for screw spline joinery
  • • Pressure-equalized and zone glazed
  • • Captured or 2-sided structurally glazed
  • • 2-1/2" Sightline
  • • 6" to 7-1/4" System depths
  • • Infill: 1"
  • • Accepts a 1" insulating glass or a 1" thin triple insulating glass unit
  • • Exceptional thermal performance, without triple glazing

Reliance™-TC SS is built for curtain wall projects that need to do more -deliver stronger thermal performance, adapt to a wider range of façade conditions, and keep work moving from fabrication to installation without adding unnecessary complexity. With a 2-1/2" sightline, multiple system depths, and glazing options that include a 1" IGU or a 1" thin triple IGU, it offers the flexibility to meet project-specific performance goals while supporting IECC Climate Zones 4 - 8 and evolving stretch codes. Pressure-equalized, zone glazed, and available in captured, inside-glazed, outside-glazed, and 2-sided structurally glazed configurations, Reliance™-TC SS is designed to support efficient execution and greater façade flexibility across a wide range of project needs. Dual-finish capability, integration with entrances, operable vents, and sunshade systems, and support for Red List Free goals add greater flexibility across the façade. And because it’s part of the Reliance™ family, installers can build on previous OBE fabrication and installation experience, backed by a single-source solution for metal and glass.

  • • 2-1/2″ sightline
  • • 6-1/4″ and 7-1/4″ depth for 1″ infill
  • • Accepts 1” insulating glass or 1” thin triple insulating glass unit
  • • Polyamide and aluminum pressure plate options
  • • Thermally broken utilizing 27 mm and 30 mm thermal struts and
  • an EPDM isolator
  • • Available in inside-glazed and outside glazed configurations
  • • Captured and SSG (Structural Silicone Glazed) vertical or
  • horizontal mullions
  • • Dry glazed
  • • Zone glazed
  • • Screw spline assembly
  • • Field glazed
  • • Twin span with splice sleeve
  • • Low profile corner mullions
  • • Heavy duty mullion and aluminum structural reinforcements for
  • higher design criteria
  • • Accommodates standard and thermal doors
  • • Accommodates Zero Sightline projected and casement vents
  • • Integrated Solar EclipseTM Sunshade
  • • Factory-painted KYNAR 500/HYLAR 5000 finishes, meeting all provisions of
  • AAMA 2605
  • • Factory-anodized finishing
  • • Dual-finish capability
  • • Supports Red List Free goals
  • • Thermal Performance per NFRC 100 when using 1” CoG insulating glass of
  • 0.24: U-factor: 0.29
  • • Thermal Performance per NFRC 100 when using 1" thin triple CoG insulating
  • glass of 0.10: U-factor: 0.19
  • • CRF: Frame: 81 / Glass: 73
  • • Air Infiltration: <0.06 CFM/SQ FT (6.24 PSF) per ASTM E283
  • • Static Water: 20 PSF per ASTM E331
  • • Dynamic Water: 20 PSF per AAMA 501.1
  • • Seismic per AMMA 501.4 and 501.6
  • • STC per ASTM E90: 32 with standard 1” IGU; 38 with laminated 1” IGU
  • • OITC per ASTM E90: 26 with standard 1” IGU; 32 with laminated 1” IGU
  • • NFRC Certified Products Directory and CMAST
  • • Commercial Trendline Approach Directory (CTAD) - NFRC 715
